ELECTRICAL SWITCHES ON/OFF PUSH-PULL HEADLAMP SWITCH

$56.00
Tax included Shipping excluded
AES60018BL
Quantity
Last items in stock

Estimate shipping cost

Submit



Fast delivery - Australia wide service



Warranty - 1 year



100% - Australian owned

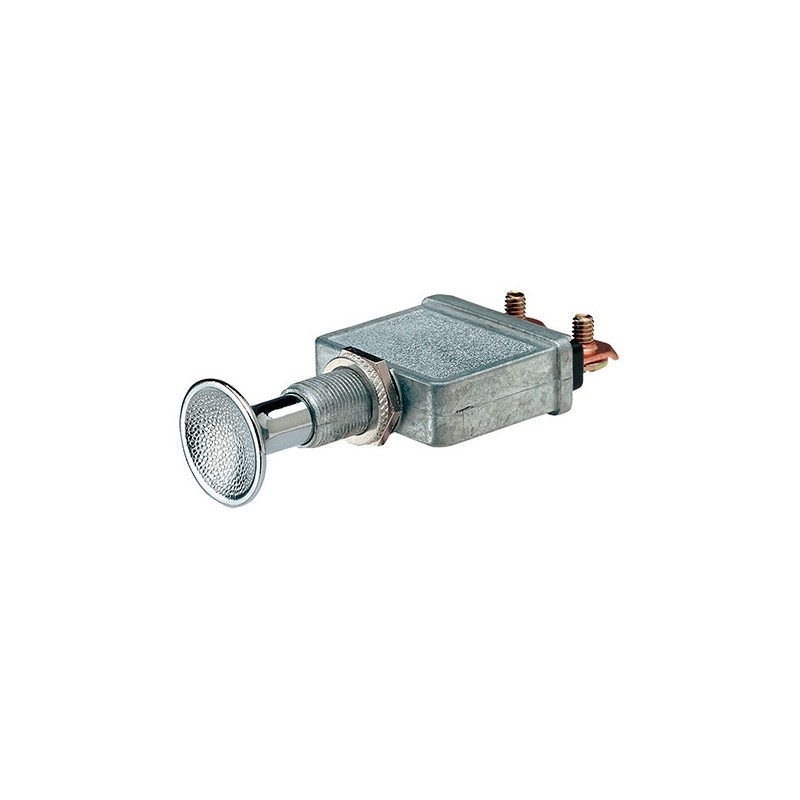

ELECTRICAL SWITCHES ON/OFF PUSH-PULL HEADLAMP SWITCH

Unit of Measure EACH
Description Narva On/Off Push/Pull Headlamp Switch
Warranty 1Y
Number of Speeds 1
Number of Terminals 2
Power Rating (Amp) 75
Switch Action On - Off - SPST
Voltage 12
Lamp Colour/s Not Applicable
Mount Diameter 12mm
Mount Length 13mm
Number of Poles 1
Number of Positions 2
Switch Type Push - Pull
Weight .07kg
Switch Illumination Non Illuminated
Features • SPST, heavy duty die cast body, chrome knob copper screw terminals.
• Amperage rating 75A @ 12V, 37.5A @ 24V.
• Panel mount.
• Mounting opening 12mm diameter.
AES60018BL

Cross Reference

60018BL
