ELECTRICAL WEATHER-PROOF RELAY 12 VOLT CHANGE OVER 35 / 20 AMP

$140.00
Tax included Shipping excluded
AESRLY47
Quantity
Last items in stock

Estimate shipping cost

Submit



Fast delivery - Australia wide service



Warranty - 1 year



100% - Australian owned

ELECTRICAL WEATHER-PROOF RELAY 12 VOLT CHANGE OVER 35 / 20 AMP

Brand HELLA
Unit of Measure EACH
Description Weather Proof Relay 12V Change Over 35/20A - Resistor Protected
Warranty 1Y

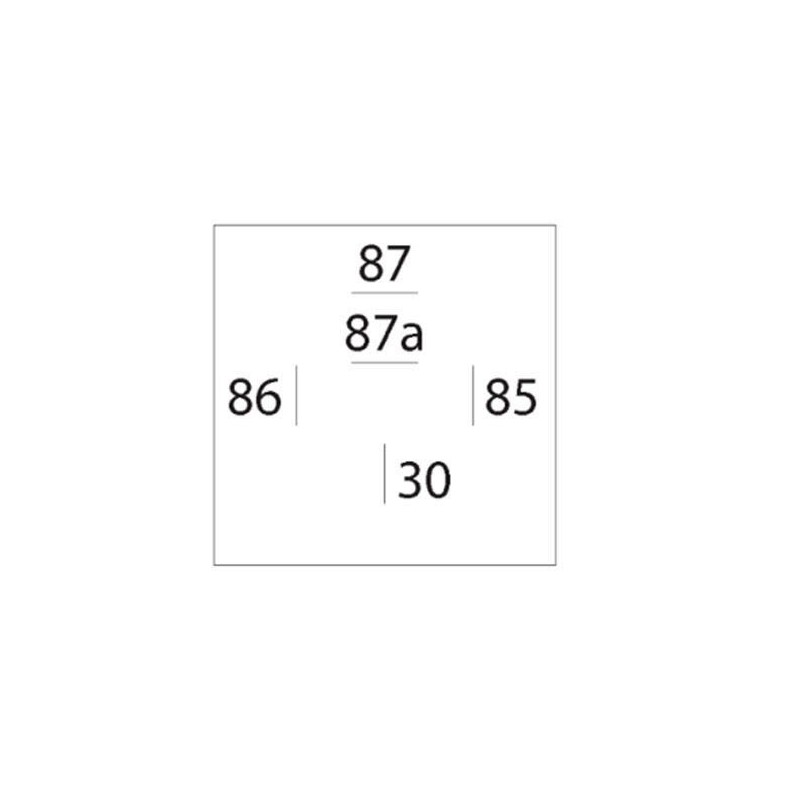

Number of Terminals 5
Power Rating (Amp) 35/20
Voltage 12
Weight .085kg
Relay Action Change Over
Spike Protection Resistor
Type (Mini / Micro) Weather Proof

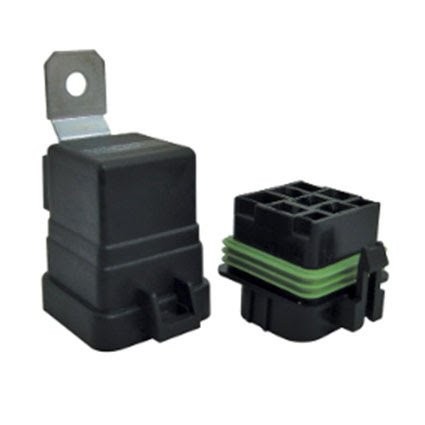

Features • Kit contains 1 x ISO style change-over relay, 1 x connector body with seals for pull to seat terminals, 3 x large barrel pull to seat terminals 6.3mm width suits cable size 3.00mm2, 2 x small barrel pull to seat termains 6.3mm width suits cable size 1.00-2.00mm2 and transisent suppressor resistor 680 Ohms.
New product
AESRLY47

Cross Reference

HMWPR001
